Al Hoceima's Design Drawings

(41' Petit Prince ketch, designed by Marcel Sobrero)


Summary: Al Hoceima's design drawings by Marcel Sobrero.


You may want to check out our Selected Books section under the Boatbuilding and Refitting or Maintaining Your Boat categories for books about building or keeping cruising boats running.




Click on them to enlarge - they actually look like something, honest!

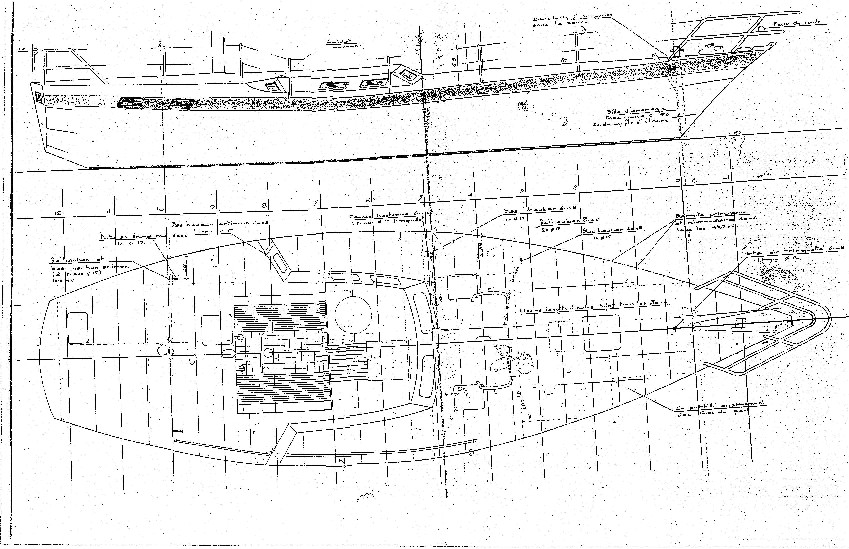

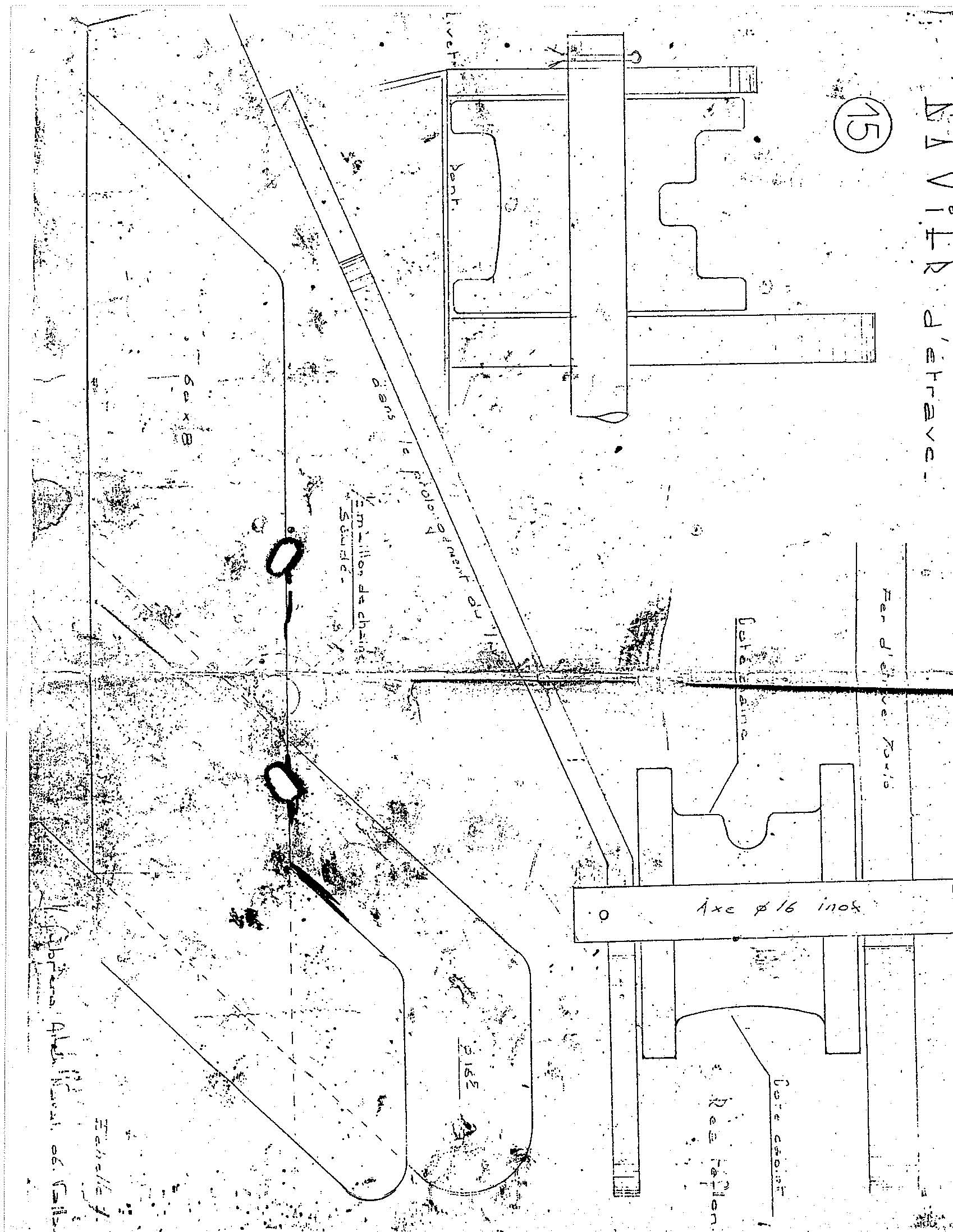

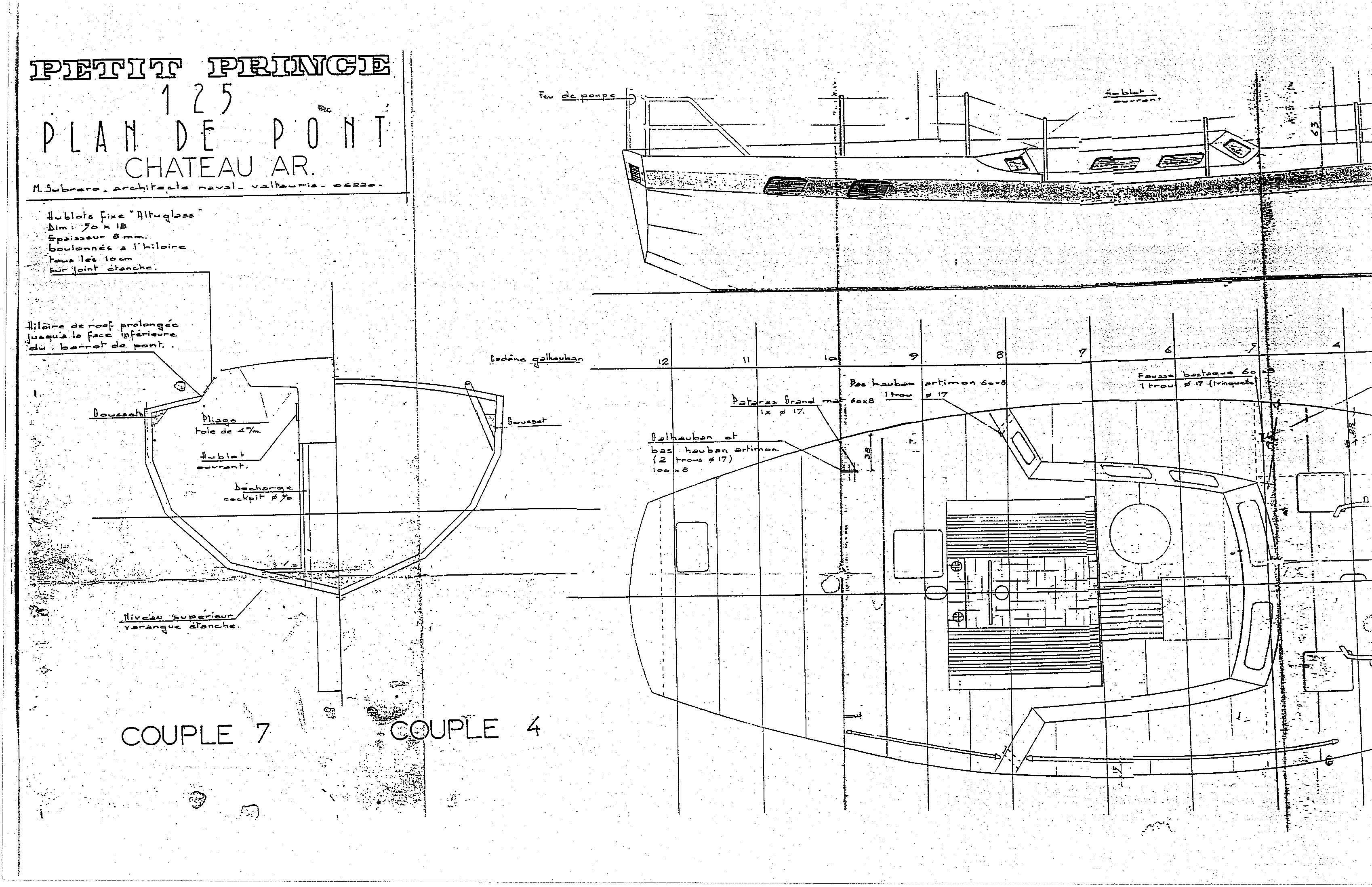

Deck Layout details


Profile view - interior layout details

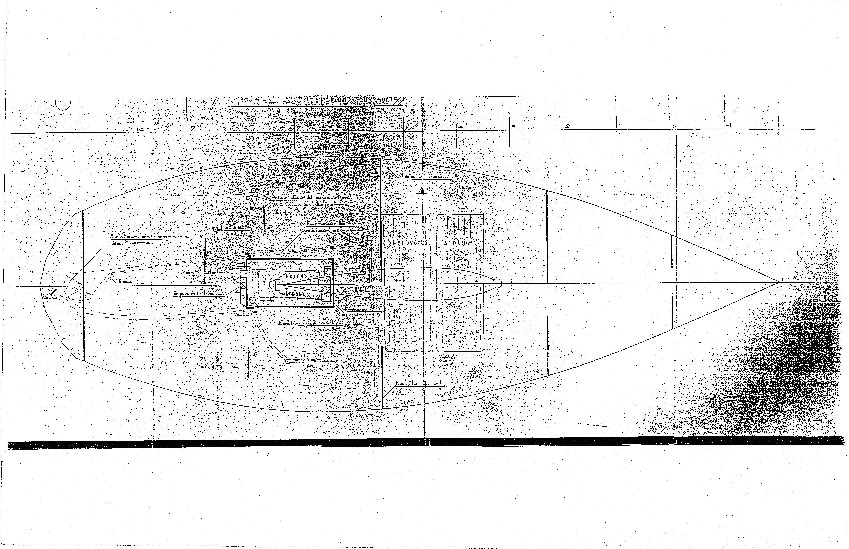

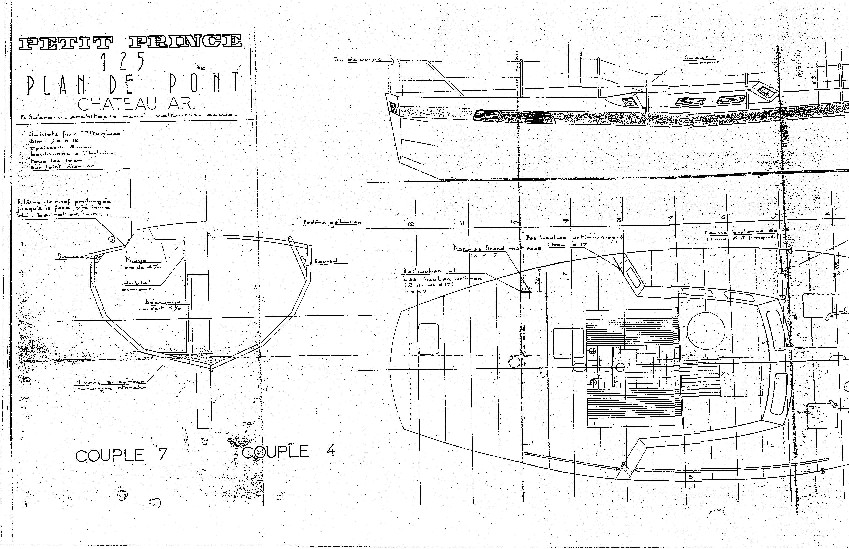

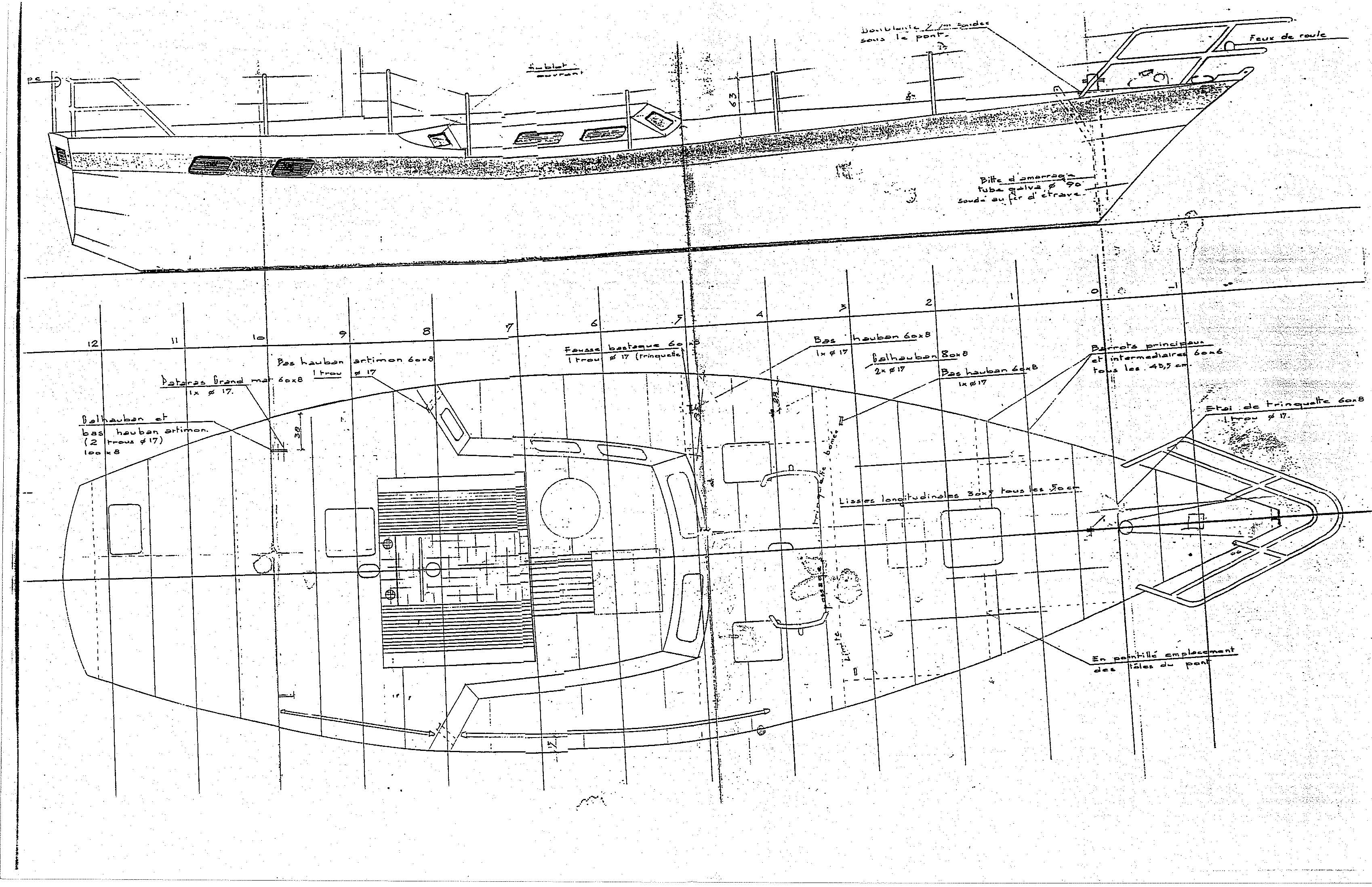

Hull and Deck layout

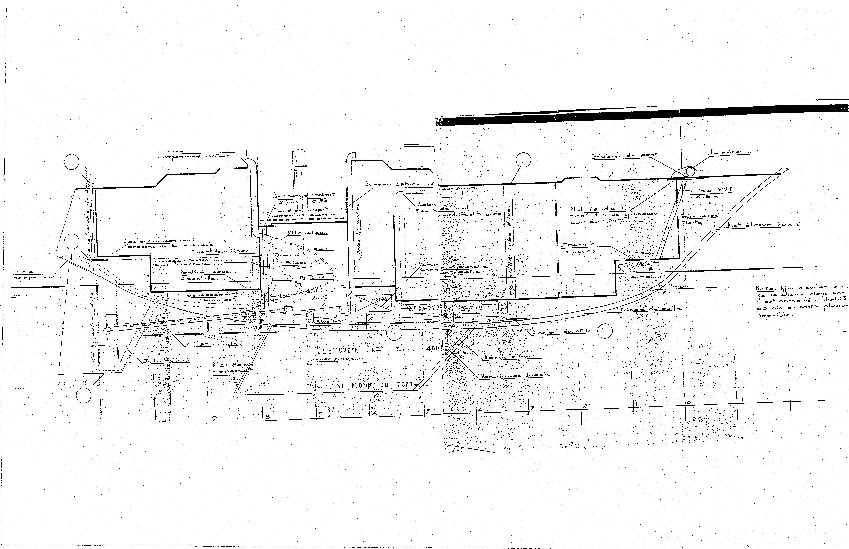

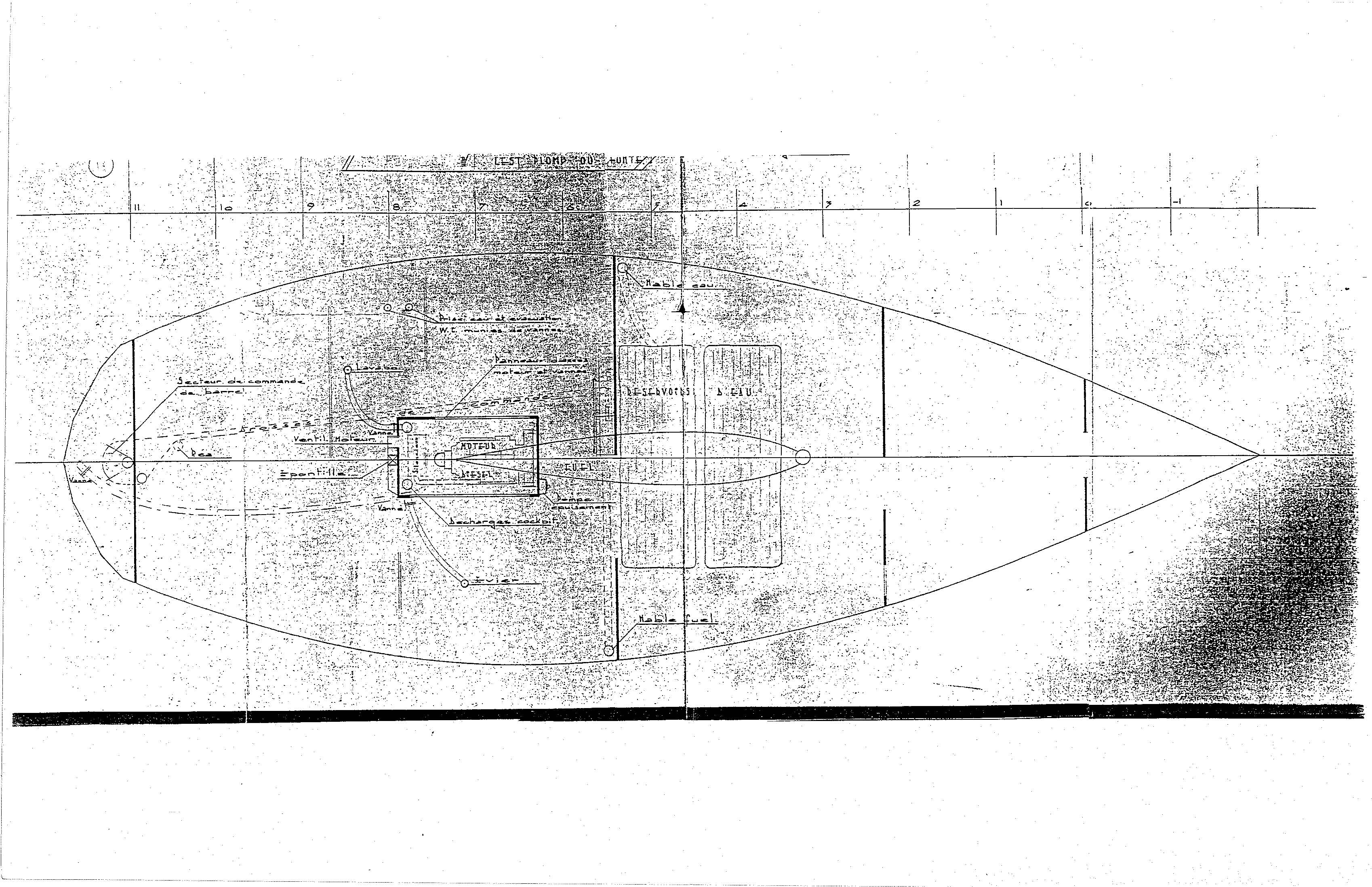

Shows original location of keel fuel tank and water tanks

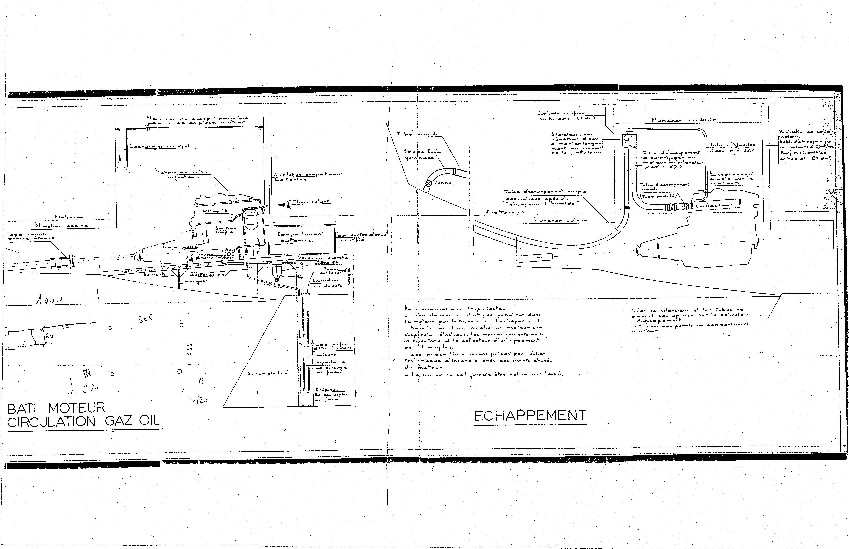

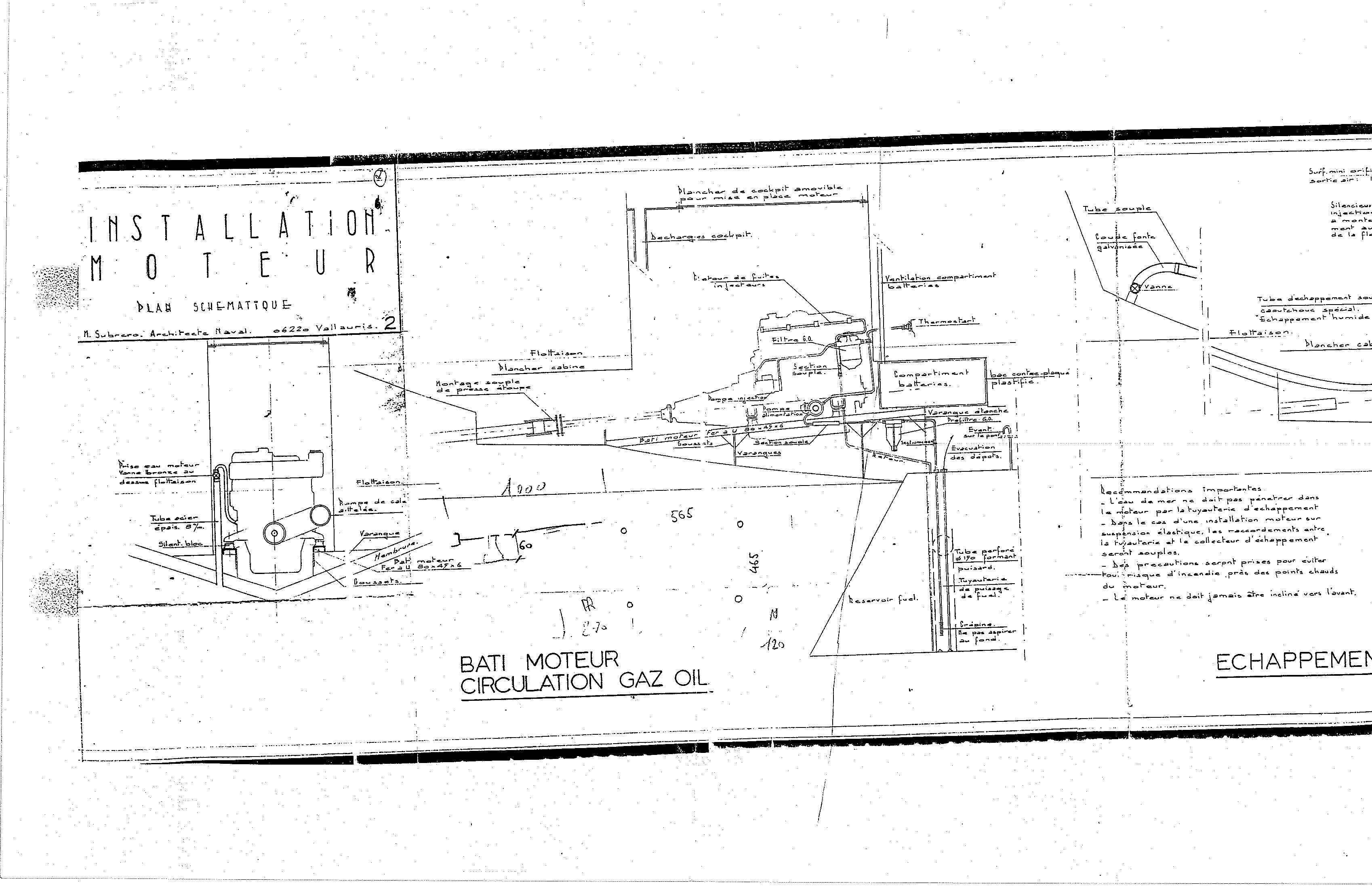

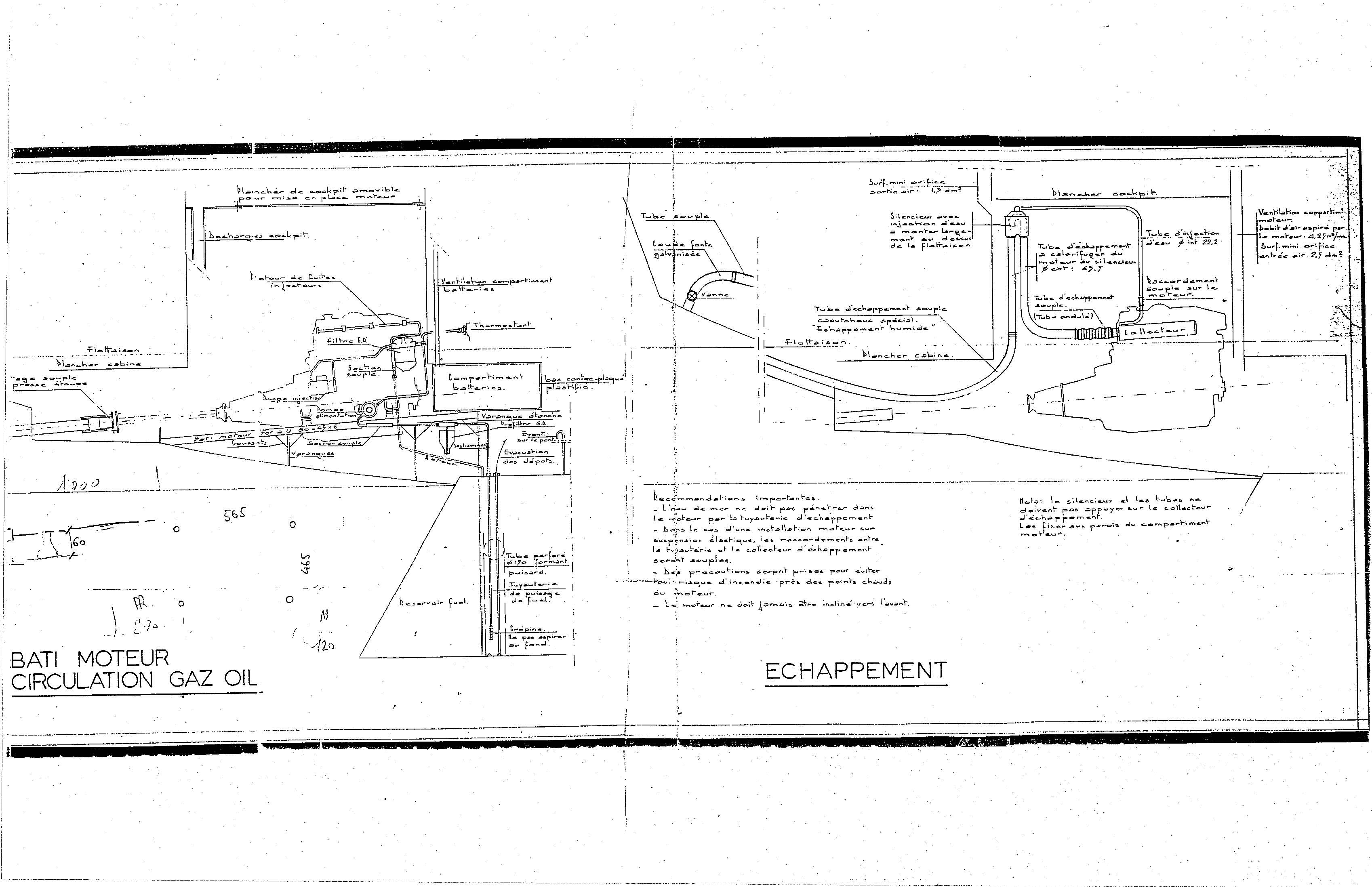

Engine installation details

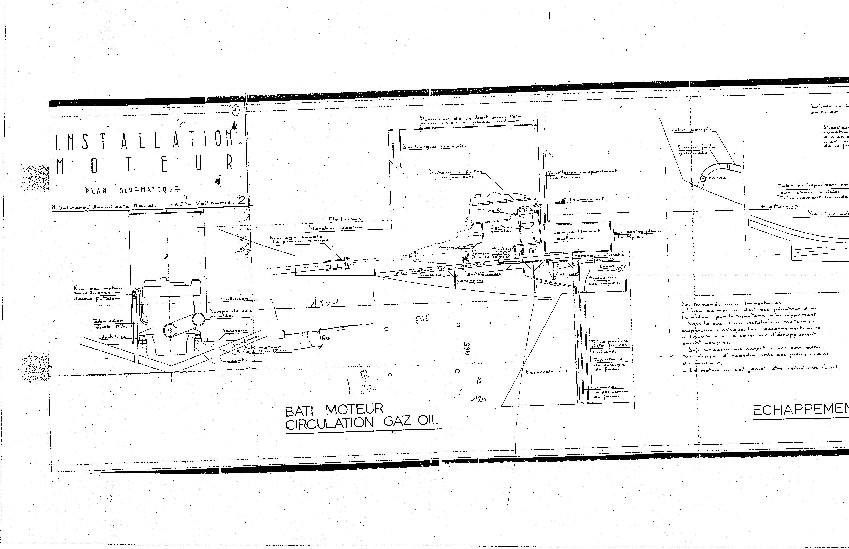

More engine installation details



Electrical diagram including windlass (has since been replaced with a manual windlass)

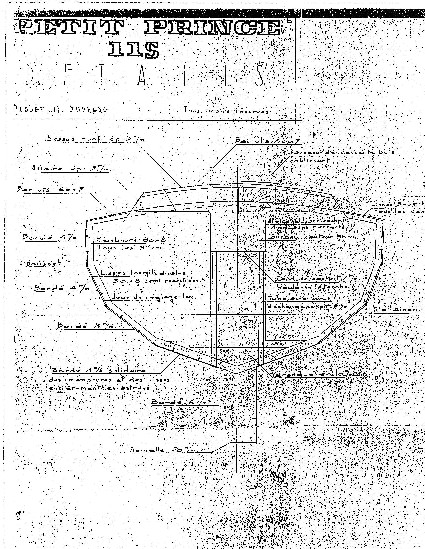

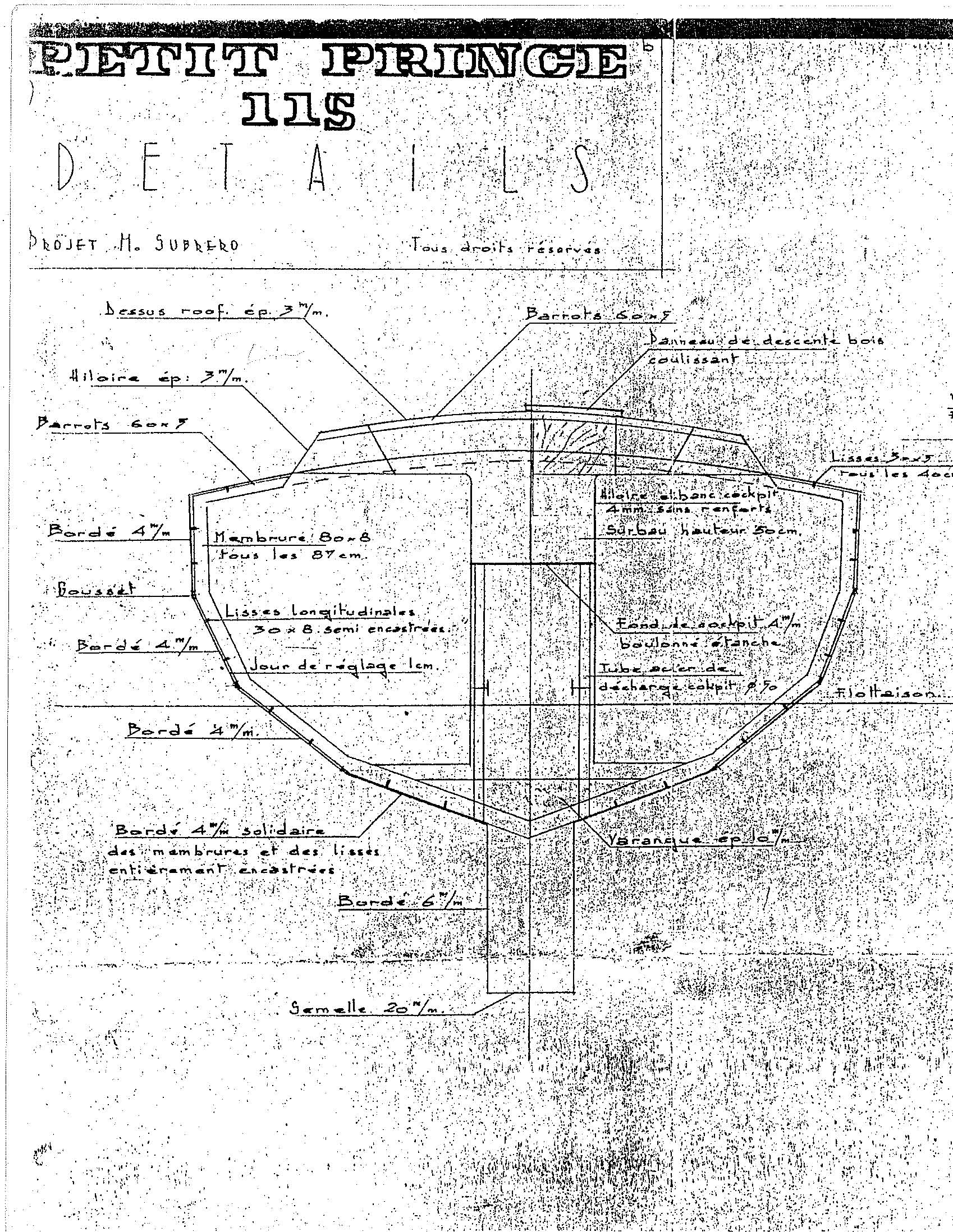

Hull structure details

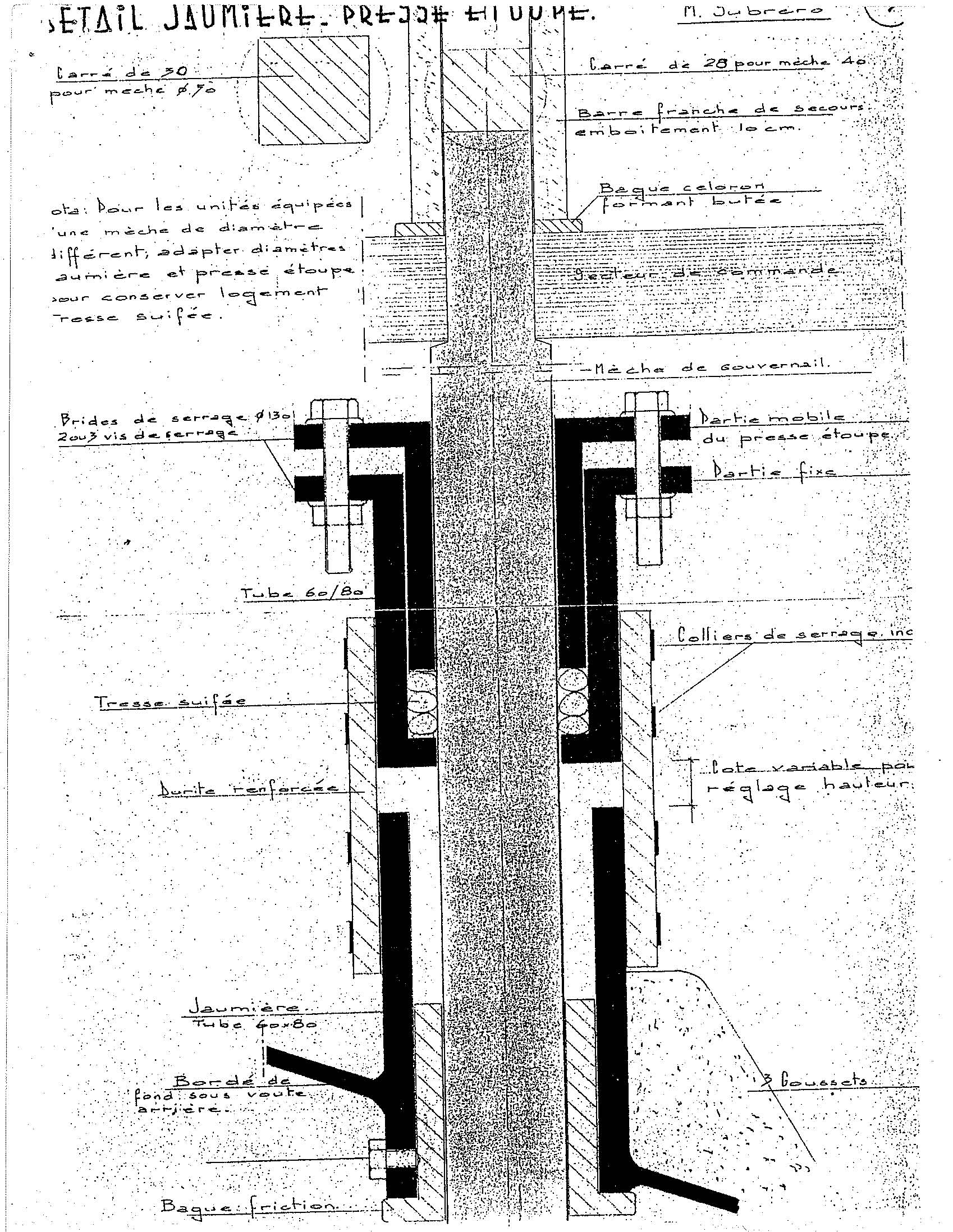

Rudder post stuffing box assembly (1/4" flax packing)

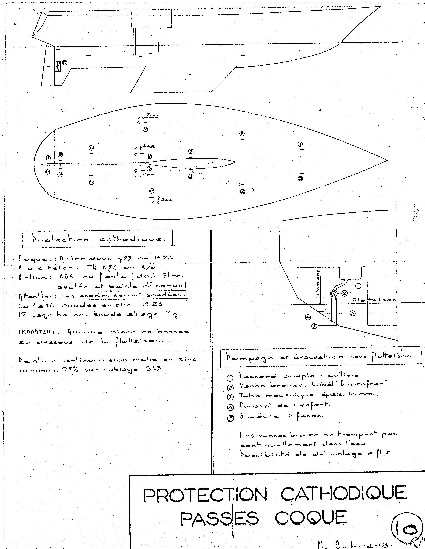

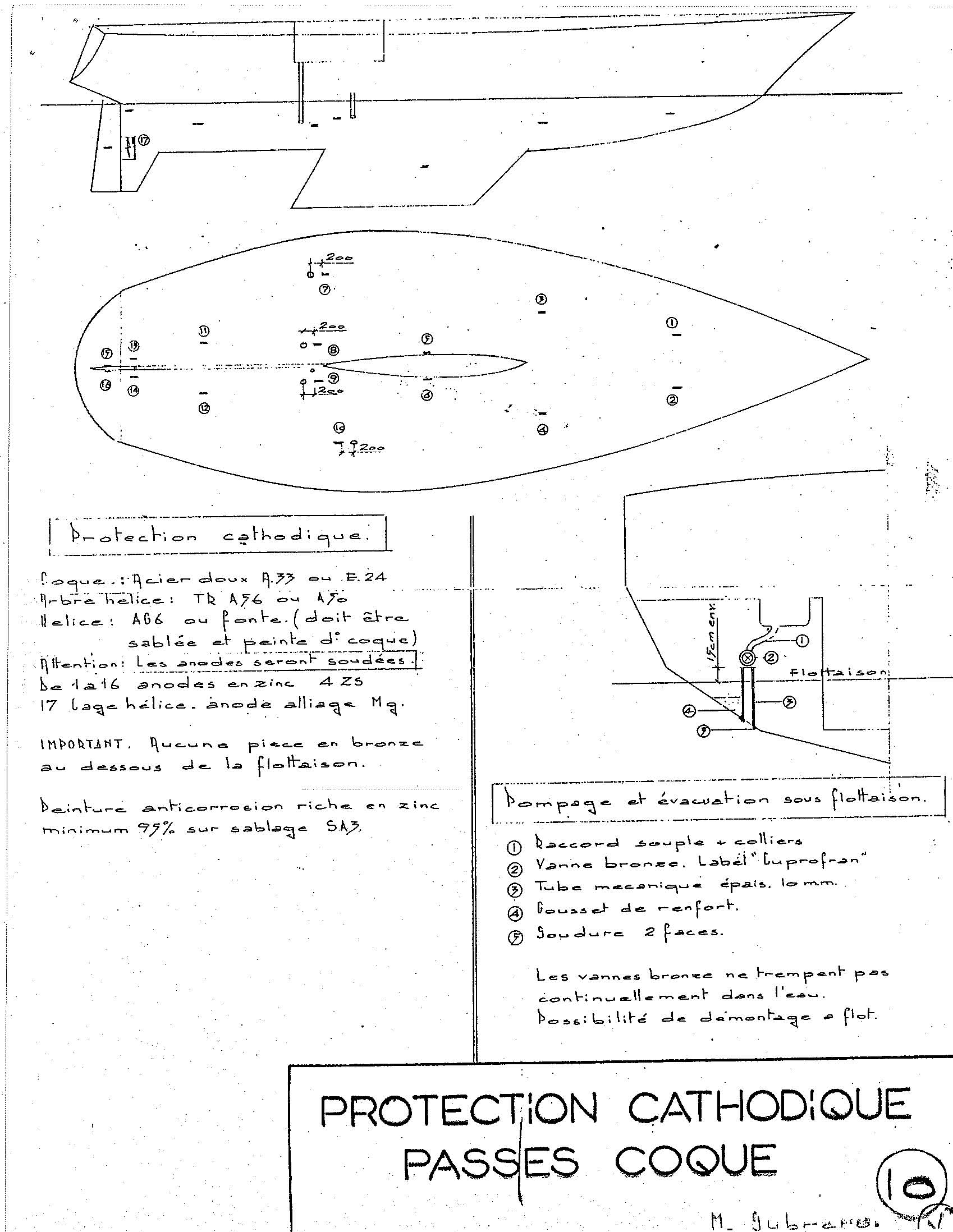

Location of sacrificial Zinc Anodes (for cathodic protection)

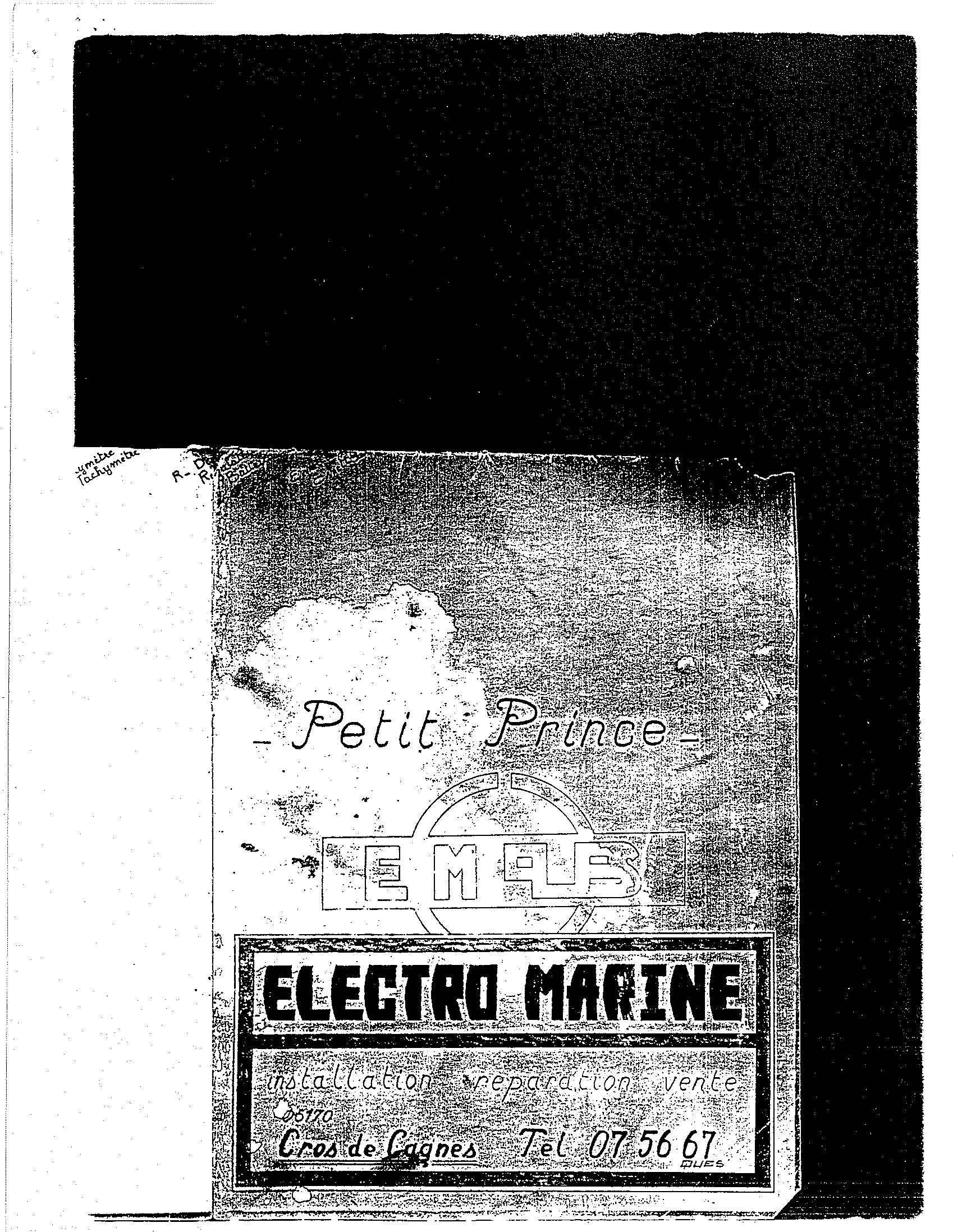

Cover page for electrical diagram

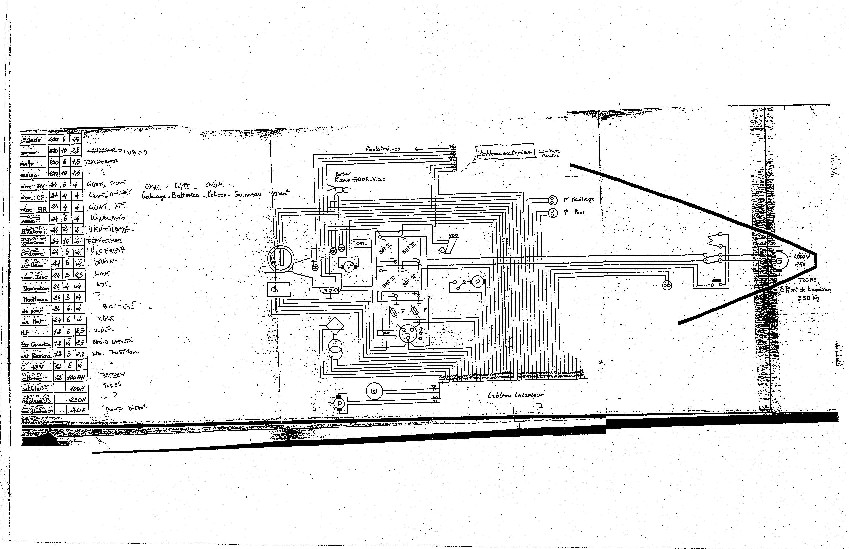

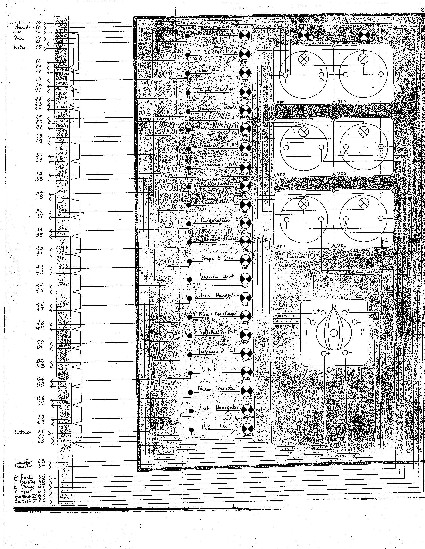

Electrical wiring diagram

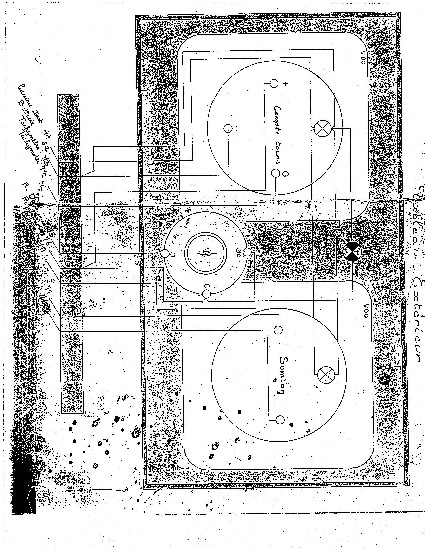

Not sure - Engine guages?

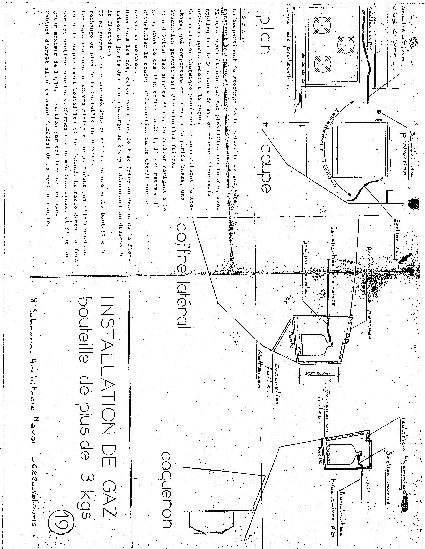

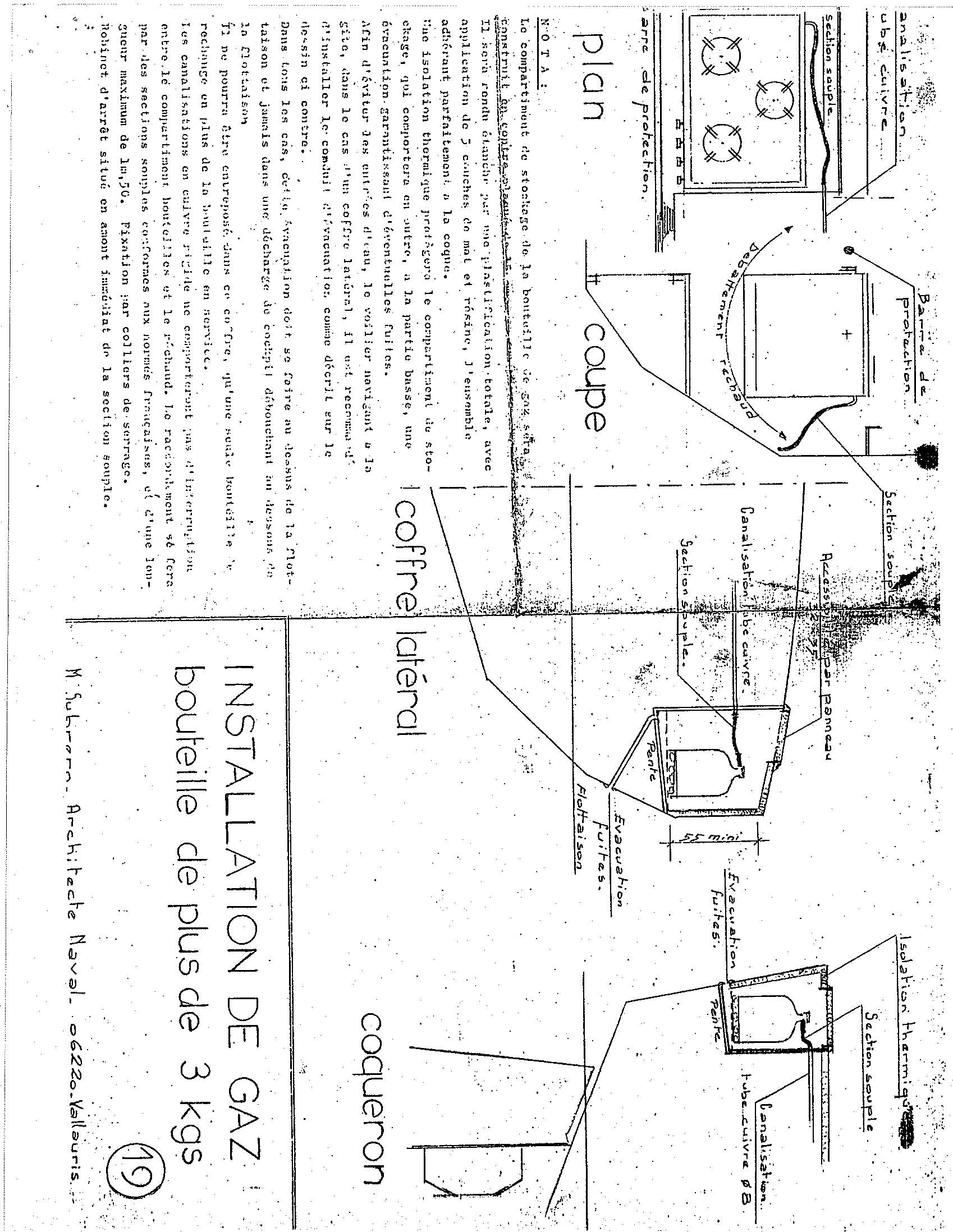

Propane locker and stove hookup


Not sure what this one is!

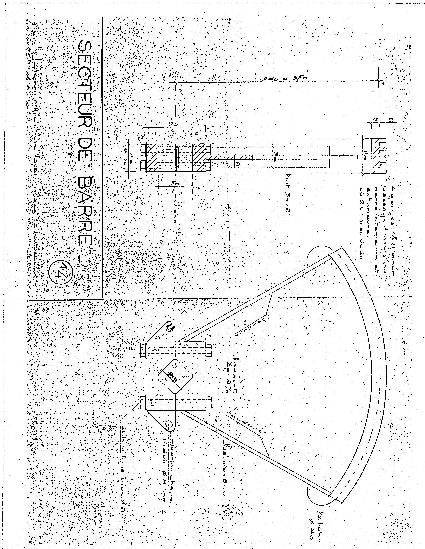

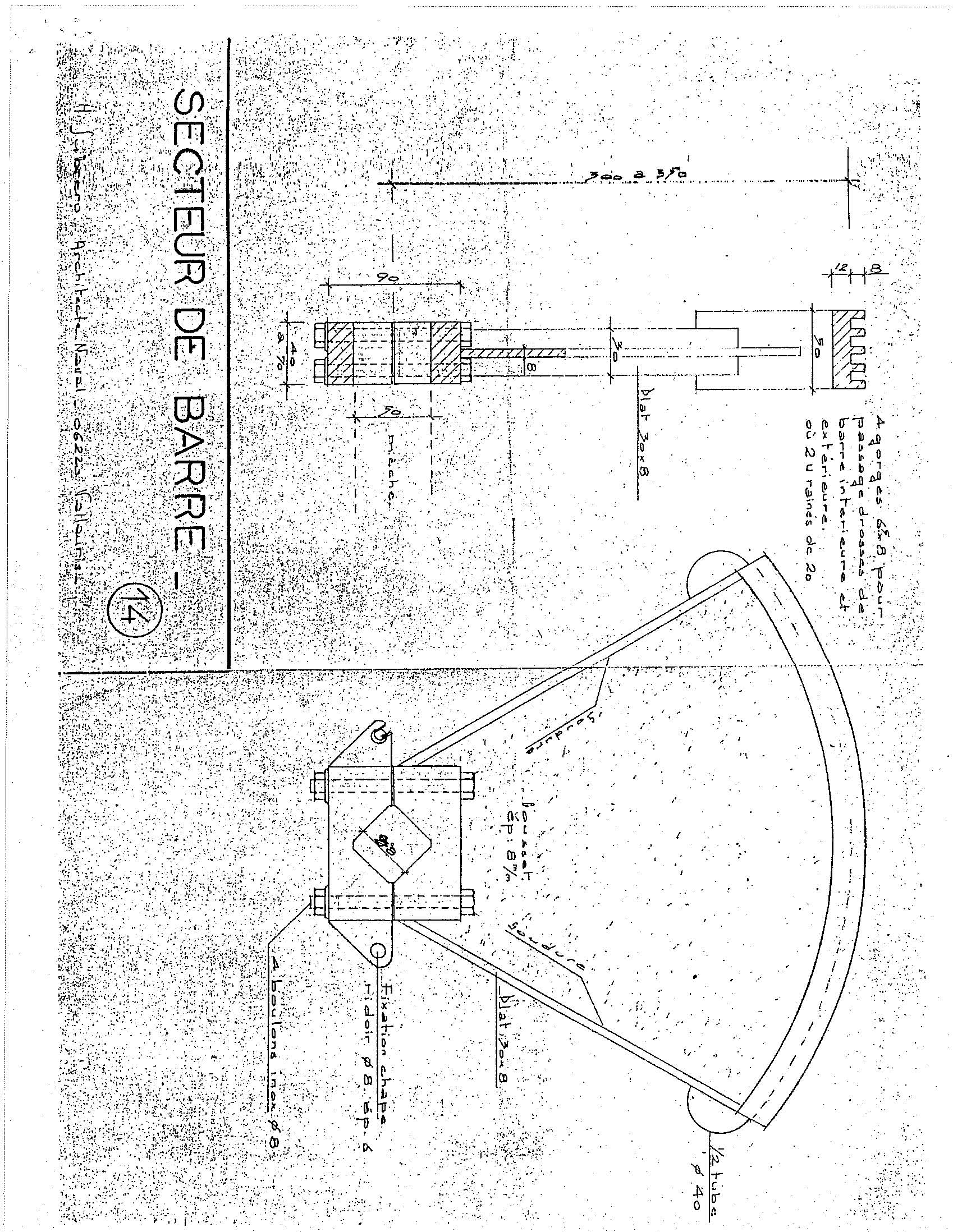

Steering Quadrant

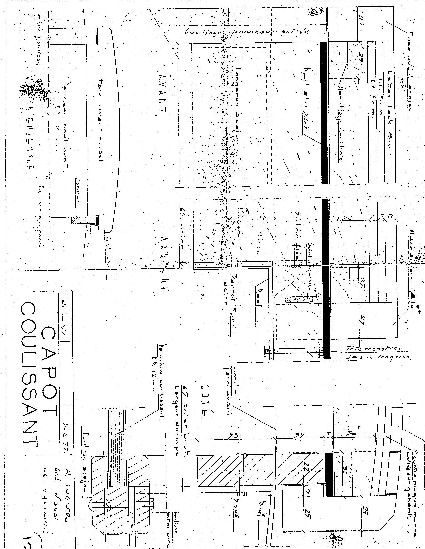

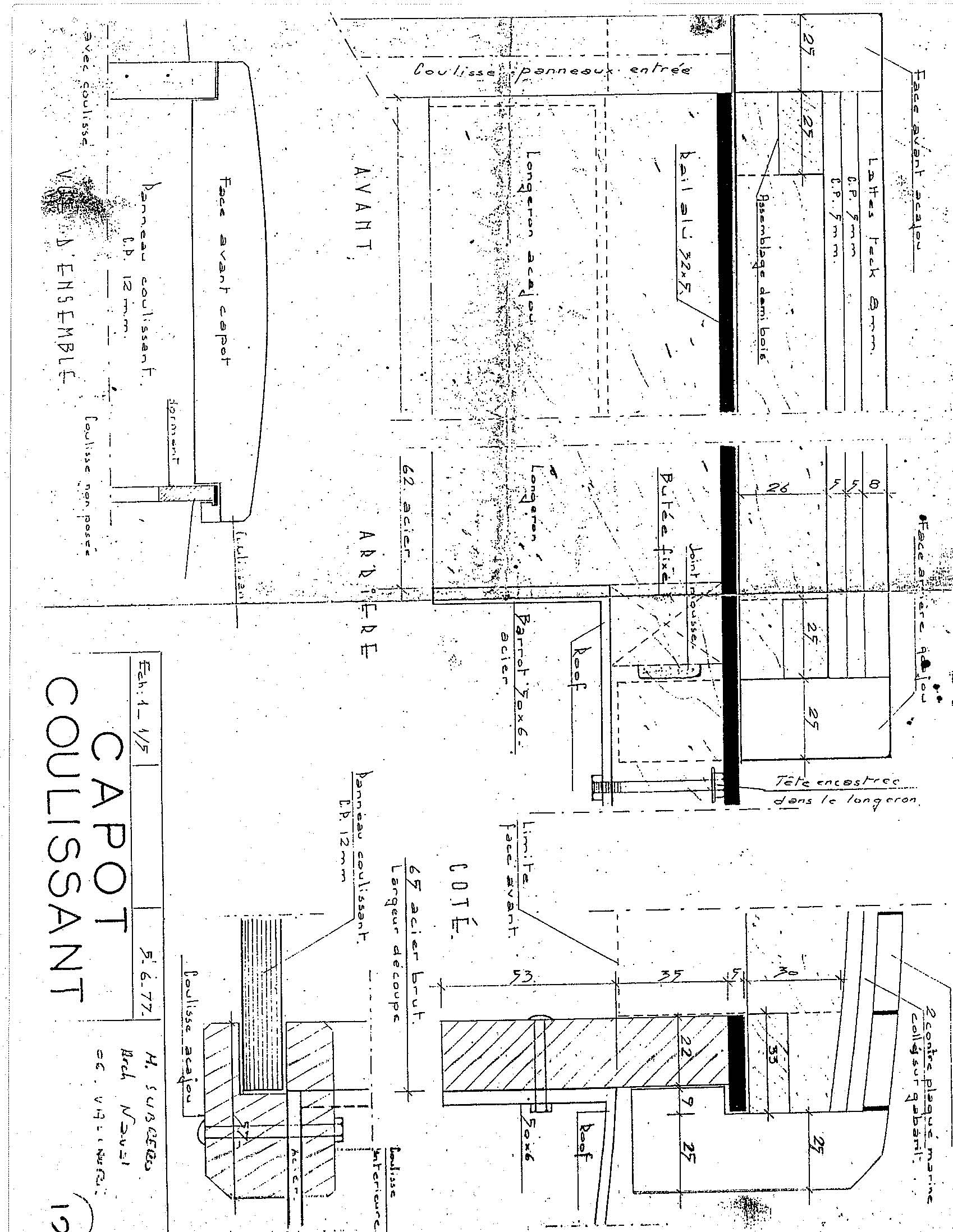

Companionway Hatch (I think)

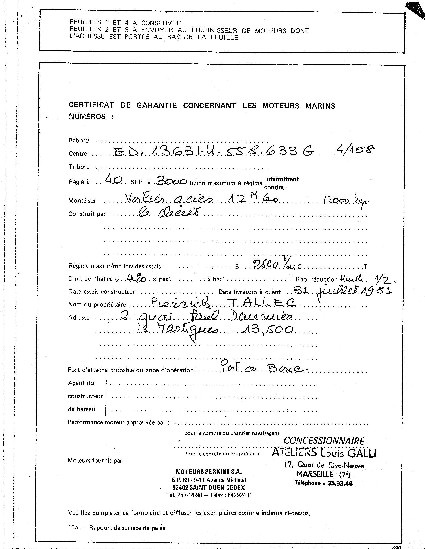

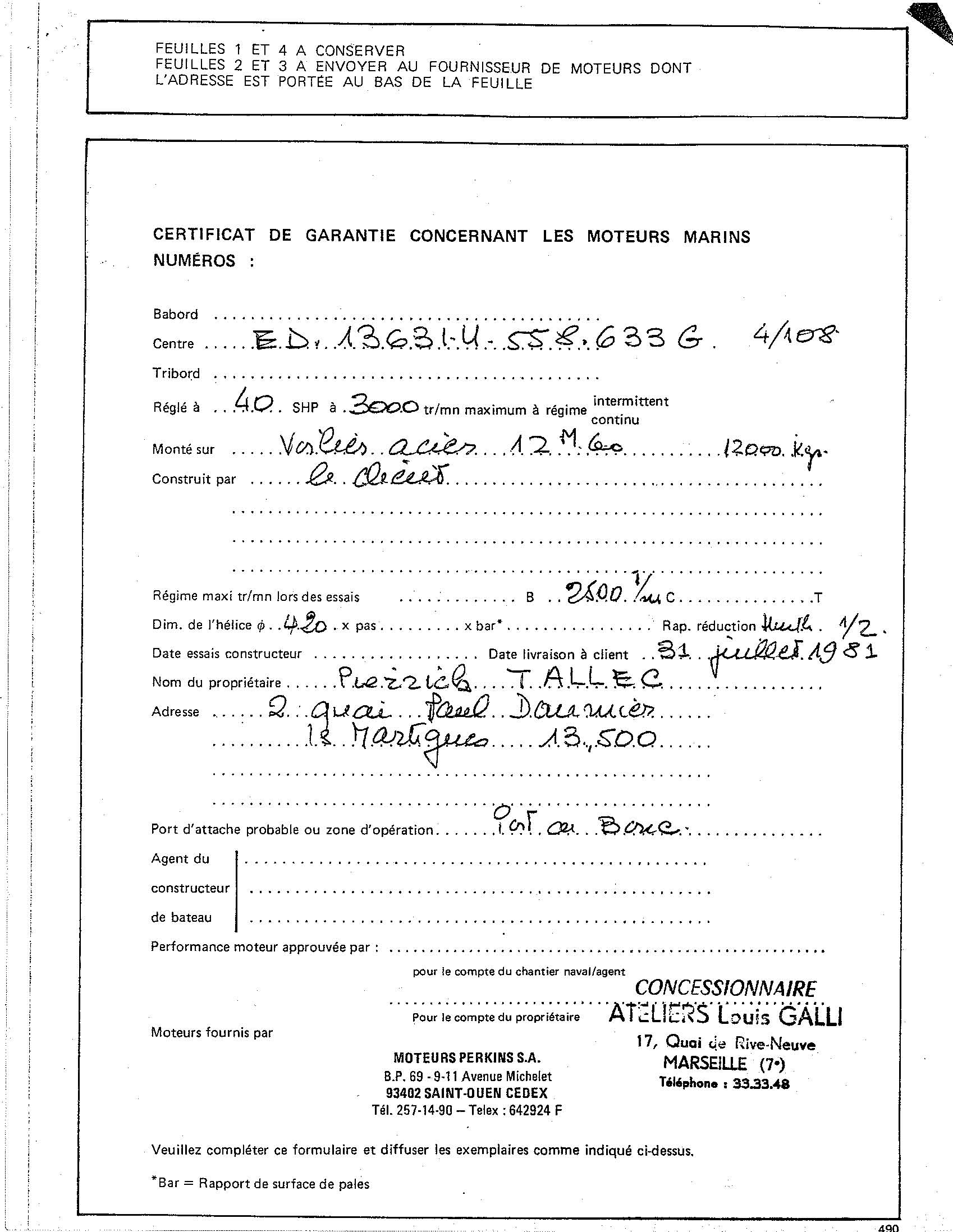

Perkins 4.108 engine certificate

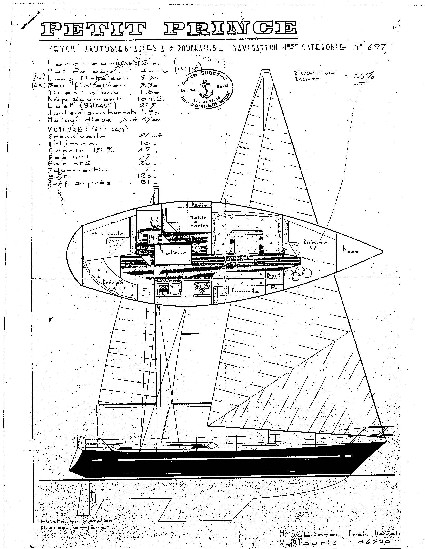

Sail plan, underwater profile, interior layout
